Conveyor Belt Alignment Guide

Getting a belt to track true isn’t luck—it’s geometry, tension, and discipline. This Conveyor Belt Alignment Guide distills proven field methods and standards-aligned practices to help plant engineers and reliability teams diagnose mistracking, apply corrections safely, and lock in stable performance. We’ll use plain language for key terms, cite reputable industry sources, and provide decision aids you can take to the catwalk.

Key takeaways

• Verify geometry first: square, level, clean, and centered loading before adding trainers or crowns.

• Make small, progressive idler adjustments—primarily upstream of where deviation appears—and let the belt run several revolutions between changes.

• Trainers and crowned pulleys help, but they’re secondary to structure and tension; reversible belts need special care.

• Commission with an empty-to-loaded sequence, document as-built geometry, and maintain a tracking log.

• Follow OSHA LOTO and guarding rules; alignment work happens only under controlled, safe conditions.

Core concepts and definitions

What “alignment” and “tracking” mean

• Alignment (or tracking) is keeping the belt centered on the conveyor’s design centerline, so edges don’t rub structures, material stays contained, and components wear evenly.

• Belt centerline vs. conveyor centerline: The belt’s midline should ride over the conveyor’s structural midline; persistent offset signals a geometry, tension, or loading issue.

• Neutral axis: The internal line in the belt that sees no tension when bent over a pulley; stiffer constructions (e.g., steel-cord) resist bending/steering.

• Trough angle: The side-roll angle (e.g., 20°, 35°, 45°) of a three-roll idler that shapes the carry strand. Steeper troughs stabilize loads but change how adjustments steer the belt.

• Transition distance: The flat-to-trough (tail) and trough-to-flat (head) zones where the belt changes shape. Poor transitions can pinch edges and cause wander.

• Take-up: Gravity, screw, or hydraulic device that sets and maintains belt tension. It’s for traction and compensation—not the primary tracking lever.

• Wrap angle: The angle of belt contact around a pulley; more wrap (with proper lagging) improves traction and stability.

• Splice squareness: The cut angle at the belt joint. Out-of-square splices introduce cyclic steering and drift.

Why belts drift: the steering principle in plain language

A belt tends to move toward the side of a roller or pulley it contacts first. If an idler is skewed so the left side leads the right, the belt will steer left. That’s why tiny, upstream corrections with idlers can produce big, downstream results. Practical guides emphasize a “small-and-slow” approach and locating adjustments primarily upstream of the visible deviation, allowing several belt revolutions for the effect to settle, as summarized in the GL Belt tracking guide (2024) and the alignment chapter from Martin Engineering’s Foundations (2021+ excerpt).

• See the procedural emphasis in the Conveyor Belt Tracking Guide by GL Belt (2024) for progressive adjustments and geometry-first steps: the document outlines squaring pulleys and idlers, correcting return run first, then carrying run, and evaluating changes after several revolutions. Reference: the public PDF linked in the References section.

• Martin Engineering’s Foundations chapter on alignment/training (2021+ excerpt) expands on cause-effect distances and the role of trainers and crowned pulleys as secondary tools; see the Foundations chapter link in the References.

Where standards fit (CEMA, ISO, DIN)

• CEMA Belt Conveyors for Bulk Materials is the common U.S. practice baseline. It informs idler location/spacing, transition zones, and commissioning discipline used in many specifications.

• ISO 5048 and DIN 22101 provide tension/power frameworks that define the belt’s traction envelope (wrap, slip margin). They shape the conditions under which tracking methods work.

• Because these documents are often paywalled, this guide cites accessible, reputable summaries and OEM literature while keeping recommendations consistent with standard practice.

Conveyor Belt Alignment Guide: diagnostics and methods

Getting tracking under control is a sequence. Here’s the engineer’s playbook, aligned with field-proven procedures.

Progressive idler work: order of operations that actually holds

• Start on the return run and work toward the tail pulley. Clean or replace seized rollers first. Confirm pulleys and idlers are square to the centerline.

• Track empty before you track loaded. Make incremental idler shifts in the direction of belt travel on the carry strand and opposite on the return, evaluating each change after several revolutions.

• Distribute corrections upstream of the problem zone. Tiny angle changes can produce large downstream steering; don’t over-correct.

• After empty tracking is stable, load the belt. If tracking changes, inspect loading geometry before touching idlers again.

These practical points echo the step-by-step approach in the GL Belt guide (2024) and Foundations alignment chapter (2021+ excerpt), both linked below.

Trainers and crowned pulleys: valuable—but with limits

• Training idlers (carry, return, V-return, pivoting designs) are appropriate after structure is verified. They respond to belt wander by steering the belt back to center.

• Crowned pulleys can help on shorter, lower-tension conveyors. Their effect diminishes on high-tension and steel-cord belts; excessive crown can accelerate edge wear.

• Reversible conveyors are special: trainers and crowns may center the belt in one direction but mis-track in reverse. In such cases, start with a rigorous geometry survey and consider purpose-designed reversing trainers rather than relying on crowns alone.

These limitations are covered in Martin Engineering’s Foundations alignment/training chapter (2021+ excerpt), cited below.

Loading and impact zone geometry: center the material, calm the belt

• Avoid loading in transition zones; place the first full-trough idler far enough from the tail to prevent edge pinching.

• Align chutes and impact beds with the belt centerline and flow direction; adjust skirtboards to avoid side drag.

• Over-wet or sticky fines can build up on pulleys and idlers, creating asymmetric contact. Housekeeping is part of alignment.

LEWCO’s installation/tracking guidance (2020) and Martin Engineering’s transition-zone practices provide accessible references for these steps.

Survey methods and documentation: measure, don’t guess

• Stringline and centerline checks establish quick visual baselines along belt edges and structure.

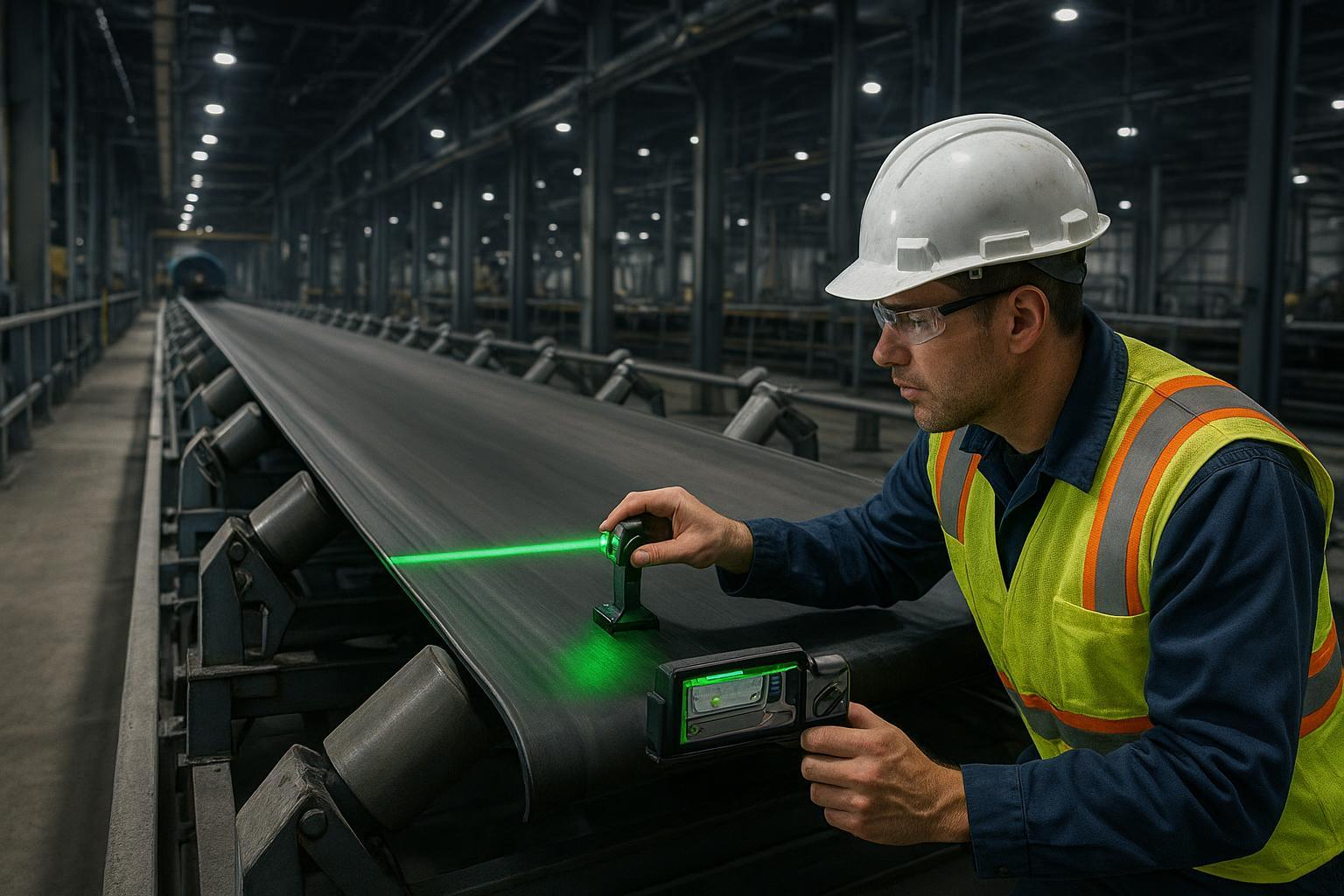

• Laser/optical alignment tools quantify idler squareness and pulley parallelism to shop-like tolerances.

• Plumb/level checks at supports confirm structural twist or sinkage.

• Document as-built axes, shim stacks, and idler offsets; a tracking log helps correlate adjustments with observed effects across seasons and loads.

Practical applications and case snapshots

Here are condensed, anonymized scenarios illustrating how disciplined geometry and targeted devices stabilize tracking. When numeric results are included, treat them as modeled examples unless you confirm site logs.

Mine overland conveyor (wide EP fabric belt)

Problem: Seasonal moisture increased carryback. Head and snub pulleys developed uneven buildup, and the belt drifted right near the head under high tonnage.

Actions: Cleaned lagging and snub, squared the last three troughing idlers upstream, added a V-return trainer 20 m upstream of the tail after verifying geometry, and re-centered loading from the transfer chute.

Outcome (modeled): Edge alarms ceased; wander reduced to within visual tolerance during a 45-minute run at operating speed; operator adjustments dropped from daily to weekly checks.

Cement plant loading conveyor (impact zone instability)

Problem: Belt wandered at the tail during startup and under high-impact loading; skirtboard contact scuffed the left edge.

Actions: Shifted the last return roller height, verified tail pulley squareness, re-leveled the impact bed, and installed fresh impact idlers. Adjusted skirtboard alignment.

Outcome (modeled): Startup tracking stabilized; spillage events decreased; impact bed temperature drop suggested reduced frictional contact.

Reversible ship-loader (ports/logistics)

Problem: Acceptable tracking outbound; inbound (reverse) drifted left, contacting guards intermittently.

Actions: Full geometry survey with laser; removed an ad-hoc crowned snub; installed a reversing-capable trainer on the return run after verifying tension and wrap angles; corrected a misaligned chute that pushed material left in reverse.

Outcome (modeled): Both directions tracked within operational limits over a 60-minute test; belt-edge wear rate normalized.

Micro-example (neutral, contextual): In a similar port application, a team selected heavy-duty training idlers and rubber-lagged drive pulleys sourced from BisonConvey after completing the geometry survey. The components supported the corrective plan by maintaining traction and providing responsive steering, but the success hinged on squaring frames and centering the load first.

Selection and implementation guidelines

Component choices should follow the geometry-and-tension foundation. Think of components as enablers rather than silver bullets.

• Idlers: Select trough angle by load and speed (e.g., 35° common, 45° for high capacity). Use sealed bearings in dusty environments. Consider V-return for wide belts to stabilize the return strand. Reserve self-aligning idlers until the structure is verified.

• Pulleys: Choose diameters that meet or exceed minimums for your belt class; use rubber or ceramic lagging to increase friction where slip risk exists. Crowned pulleys only where appropriate (short, low-tension service; not preferred on steel-cord; caution for reversible).

• Belts: Carcass stiffness matters. Steel-cord belts resist steering; fabric (EP/NN) belts respond better to small idler adjustments. Chevron and profiled belts conform poorly to crowns—consult the belt OEM before using crowns in these applications.

• Take-up: Gravity systems provide consistent tension; verify available travel and setpoints. Use take-up to secure traction and compensate for elongation—not to “steer” the belt.

For a component overview suitable for alignment projects—especially conveyor idlers and pulleys—see your internal specifications or review a neutral product hub such as the BisonConvey catalog under “products” (linked at the end of this article).

Decision matrix: choosing alignment aids by application

The table below summarizes typical suitability. It’s a qualitative guide—confirm with your OEM and site standards.

Troubleshooting and maintenance

Use this symptom-to-action engine to move from observation to correction. Verify safety controls (LOTO, guarding) before any work.

Maintenance discipline keeps tracking stable:

• Structural surveys quarterly or seasonally with stringline or laser; record shim stacks and offsets.

• Cleaning program for pulleys/idlers; inspect lagging; swap seized/misaligned idlers promptly.

• Verify take-up travel and tension setpoints; monitor belt edge wear and heat.

• Keep a tracking log that ties changes to outcomes; it’s your best teacher over time.

For safety, align with OSHA’s general industry requirements on lockout/tagout and guarding. See the agency’s overview of control of hazardous energy (29 CFR 1910.147) and machine guarding requirements (1910.212/1910.219) via the links in References.

Commissioning checklist (compact)

Commissioning is where you set the baseline. Here’s a concise sequence and acceptance criteria.

1. Pre-start survey: Frame level/square; pulleys parallel; idlers perpendicular; transitions adequate; debris cleared. Document initial geometry with photos and measurements.

2. Initial run empty: Apply recommended initial tension; run at low speed; correct the return run first, then the carry run using small, upstream idler shifts. Let the belt complete several revolutions between changes.

3. Verify safety: Use formal LOTO, spotters at intervals, working radios, and confirm emergency stops. Guards remain in place; remove only under LOTO.

4. Load test: Introduce material gradually; confirm centered loading and stable skirtboards/impact beds. If tracking changes with load, fix loading geometry before re-tuning idlers.

5. Acceptance: Belt stays centered without edge contact for a sustained interval at operating speed (e.g., 30–60 minutes). No drive slip, abnormal vibration, or rapid buildup. Capture as-built data and sign off.

These steps align with accessible installation/tracking guidance (LEWCO, 2020) and best-practice summaries from Martin Engineering.

References and standards (selected, accessible)

• Practical step-by-step field procedures summarized in the Conveyor Belt Tracking Guide (GL Belt, 2024). See the public PDF: GL Belt Conveyor Belt Tracking Guide (2024).

• Alignment/training theory, crowned pulley limits, and device roles discussed in Martin Engineering’s Foundations chapter (accessed 2021+ excerpt): Martin Engineering Foundations – Belt Alignment/Training Chapter.

• Installation, tracking, and maintenance notes (unit handling but broadly applicable concepts): LEWCO Belt Installation, Tracking & Maintenance Guide (2020).

• Transition and design context with practical implications: Martin Engineering – Conveyor Belt Transition Zones (2020).

• U.S. Lockout/Tagout program requirements (29 CFR 1910.147): OSHA – Control of Hazardous Energy Overview.

• Machine guarding requirements (1910.212/1910.219): OSHA – Machine Guarding Standards.

• Tension/pulley selection and standards framework references used by engineers: Overland Conveyor – Release Notes referencing DIN 22101 (2024).

• Industry compendium and context: NSSGA – The Aggregates Handbook, 2nd Ed. (2020, reduced PDF).

Link density note: We’ve prioritized primary or canonical sources and limited each URL to a single use for clarity.

Appendix: useful technical notes

Capstan relationship for traction (plain language)

Drive traction margin depends on friction and wrap angle around the drive pulley. Engineers often remember it through the capstan formula, T1/T2 = e^(μ·β), where T1 is tight-side tension, T2 is slack-side, μ is friction coefficient, and β is wrap (radians). Increasing wrap (e.g., with a snub) or friction (e.g., with lagging) raises the slip threshold, which stabilizes tracking by reducing random micro-slips.

Maintenance log snippet (CSV-style)

Date, Conveyor, Strand, Location (m), Symptom, Action, Result, Tech
  2026-04-10, CV-103, Return, 85, Drifts left, Squared 2 returns upstream, Stable after 3 revs, JDS
  2026-04-17, CV-103, Carry, 140, Wander near head, Cleaned snub; adjusted last trough idler, No rub 60 min, AM
