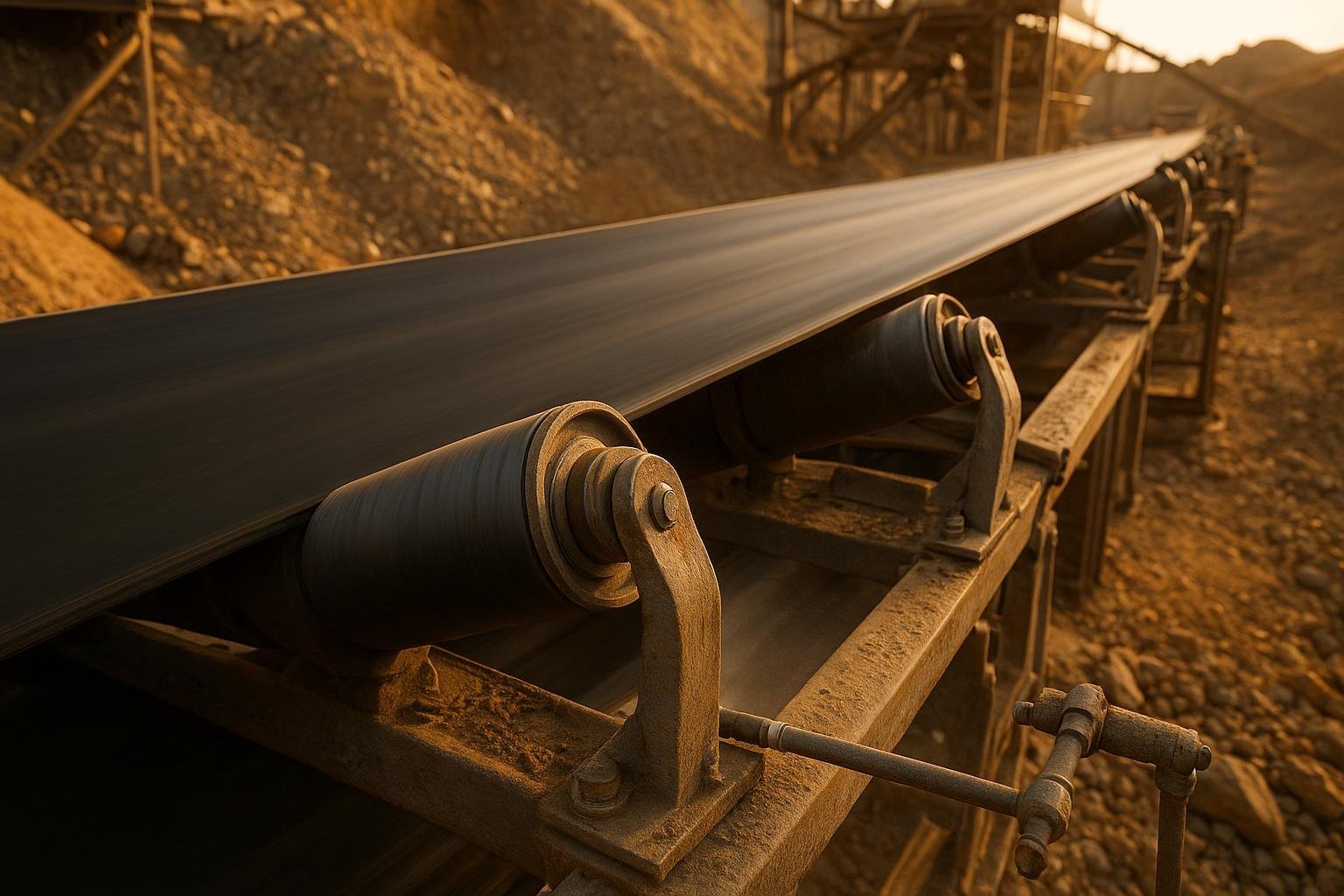

If a conveyor feels “heavy” to start, hums hotter than usual, or pulls more kW than last quarter, chances are you’re paying a hidden tax in idler drag and belt rolling losses. Improving roller rotation efficiency reduces effective tension, trims energy, and eases wear—without waiting for the next capital project. This guide takes a measurement‑first approach you can execute with standard instruments, then maps findings to retrofits and maintenance steps that hold the gains.
According to the CEMA power framework, primary resistances such as idler rotational resistance (Kx) and belt/load flexure (Ky) dominate steady‑state power on many systems; power is then computed from effective tension via hp = Te × V / 33,000. See CEMA’s calculation conventions in Chapter 6 and errata for definitions and use. For long overland conveyors, public case material shows indentation rolling resistance often takes the largest share of losses. One CEMA‑hosted paper reports roughly 61% of primary resistance from indentation in a representative overland system, underscoring why small friction reductions compound along the flight.
- Reference: CEMA’s calculation conventions in Chapter 6 are summarized in the Belt Book excerpt: see the descriptive anchor in the retrofit and formulas sections below.
Diagnose the losses you can see and hear
Before you grab a wrench, walk the belt and listen. Early cues often pinpoint where roller rotation efficiency is bleeding away.
- Bearing and seal drag: Dry or contaminated bearings run hot and “sing.” Seals that are over‑tight for the duty can add drag even when new. Over time, ingress increases viscous losses.
- Misalignment and frame skew: A twisted frame or offset stands force rolls to fight the belt, increasing rotational resistance and uneven wear.
- Unintended contact: Skirtboards riding the belt, overloaded cleaners, or material buildup that nicks the return side all add parasitic friction that can dwarf a few sticky idlers.
- Belt flexure and indentation: Overland and long plant runs often spend more on rolling the belt itself over idlers than on rotating bearings. That’s why compound choice matters for total energy.
If several of these cues stack up on one section, you’ve found a hotspot for instrumented checks.
Measure what matters to prove and prioritize
The fastest way to unlock savings is to baseline input power and pair it with simple condition measurements. Here’s a concise protocol that stands up to scrutiny.
-
kW baseline and operating load
- Log real power (kW) at the motor terminals or MCC with a calibrated meter during normal operation. Segment loaded vs. empty cycles over representative hours. Guidance on field power measurement and estimating load from input kW is laid out in the U.S. Department of Energy’s motor guides; use kWmeas against nameplate hp and efficiency to estimate % load. See the DOE’s Premium Efficiency Motor Selection guide for formulas and field procedures in 2014 edition pages on load estimation.
- Source: the method is detailed in the DOE’s field handbooks for motor‑driven systems; see the descriptive anchor in the formulas section.
-
Thermal survey of idlers
- Use an IR camera to scan idler shells and housings. Persistently hotter idlers relative to neighbors are candidates for replacement. Practical bearing references note grease‑lubricated bearings see accelerated grease degradation as temperatures climb above ~70 °C, with rapid distress well above 100–120 °C unless built for high‑temperature duty. Catalogs also show typical seal material limits (e.g., nitrile) in a similar range.
- These ranges and maintenance implications are discussed in bearing manufacturers’ guidance; see the NSK bearing maintenance and seal material documents linked later.
-
Acoustic and vibration spot checks
- Small idlers don’t map cleanly to general machine severity charts (ISO 20816/10816 scope excludes rolling‑element idler criteria). Instead, use rolling‑bearing‑specific methods or OEM acoustic enveloping presets for conveyors. SKF’s Microlog application notes describe idler sound monitoring presets suitable for walkdowns.
-
Data logging discipline
- Keep pre/post datasets under comparable ambient and loading conditions. Time‑align kW logs, thermal snapshots, and acoustic readings. After any change, re‑baseline kW under similar throughput to verify real deltas.
Turn measurements into kW, kWh, and cost
Tie your findings to power and money with a few simple equations and one worked example.
-
Load estimation from input power
- %Load ≈ 100 × kWmeas / (HPnameplate × 0.746 × ηnameplate)
- This is the approach used in U.S. DOE motor guides for field estimation of load from measured input kW.
-
Power from effective tension and belt speed
- hp = Te × V / 33,000 (U.S. units). In practice, you’ll observe the result (input kW) rather than back‑solve Te, but this relation explains why small friction changes scale across many idlers.
-
Energy and cost savings
- kWh saved per year ≈ ΔkW × operating hours
- Cost saved ≈ kWh saved × tariff ($/kWh)
Worked example (500 m plant conveyor):
- Baseline input power averaged 85 kW loaded and 35 kW empty; weighted average 70 kW across the duty cycle. After addressing hot/noisy idlers and correcting two misaligned frames, average power dropped to 66.5 kW—a 3.5 kW reduction (5%).
- The conveyor runs 5,500 hours/year. Estimated kWh saved ≈ 3.5 × 5,500 = 19,250 kWh/year.
- At $0.10/kWh, annual energy savings ≈ $1,925. If replacement rolls, frames, and labor cost $7,500, simple payback ≈ 3.9 years—before counting reduced downtime and bearing spend. Think of it this way: if the same protocol identifies a 10% reduction on a longer, higher‑power system, payback accelerates markedly.
For primary resistance definitions and how Te translates to hp, see the descriptive CEMA Chapter 6 excerpt linked below.
Retrofits that move the needle on roller rotation efficiency
Not every conveyor needs a full re‑build. Prioritize based on what your measurements show, the length/duty of the run, and outage windows.
| Retrofit option | What it addresses | Expected effect range | Disruption level |
|---|---|---|---|
| Low‑friction bearings and seal systems in idlers (proper class/diameter) | Reduces rotational resistance (Kx) and ingress‑related drag | Site‑specific; measurable on short/medium plant belts when many idlers are distressed | Low–medium (swap‑in during planned stops) |
| Optimized idler spacing and frame alignment | Cuts belt flex and roll count; prevents skew drag | Small–moderate when spacing is far from best practice; ensures even load share | Medium (re‑drill/realign frames) |
| Low rolling resistance belt covers | Reduces indentation rolling resistance on long/heavy runs | Documented cases report up to ~25% energy reduction in specific systems; verify locally with kW baselines | High (belt change) |
| Pulley lagging and drive/return alignment | Reduces slip and localized heating/drag | Small–moderate; improves reliability and safety | Medium (lagging install) |
| VFD speed control and logic | Matches speed to demand; lowers idle losses/time | Moderate where belts run lightly loaded or idling | Low–medium (controls integration) |
- Evidence anchors you can read now:
- CEMA’s calculation conventions for hp and resistance factors are summarized in Chapter 6 excerpts: see hp = Te × V / 33,000 and Kx/Ky definitions in the public excerpt from the Belt Book Fifth Edition, Chapter 6: CEMA Belt Book Chapter 6 excerpt with power formula and factors (CEMA, public excerpt).
- A measured LRR belt case in China reported about 25% lower energy on a closed‑trough system, with independent measurements by a university lab on a 5‑km conveyor: Continental case describing energy reduction with LRR compound (Continental, press release citing third‑party test, 2019).
Micro‑example—specifying low‑friction idlers in a hot zone
During a thermal walkdown, a plant team flags a 40 m carry section where several idlers run 20–30 °C hotter than neighbors and emit a rough, cyclic tone. After lockout and verification, they free‑spin the rolls and feel gritty rotation. The team swaps in sealed, low‑friction class idlers with improved labyrinth seals and verifies frame alignment. Post‑change, the kW baseline over the same duty drops by 3–4%. That’s small per idler, but meaningful in aggregate and visible in the energy log.
Where to source? Many suppliers offer compatible, low‑drag idlers by diameter and class. One option is to consult application guidance and request a quote from a specialist manufacturer like بيسونكونفي to match seal design, bearing class, and materials (e.g., UHMWPE or stainless) to your environment. Keep the tone data‑driven: spec to the duty, then verify with kW and condition data.
Maintenance and safety that protect the gains
- Lockout/Tagout and guarding are non‑negotiable. U.S. OSHA 29 CFR 1910.147 requires energy isolation and verification before servicing, and guarding of nip points and rotating parts is covered under 1910.212 and 1910.219. A quick refresher and eTools are available from OSHA: see the authoritative machine‑guarding page with standard summaries and trainer guidance in the 2020 materials.
- Inspection rhythm: Fold thermal scans and acoustic checks into weekly or monthly routes, prioritizing high‑load or dusty sections. Replace idlers that persistently trend hotter than neighbors, even if they still spin; you’re avoiding hidden drag and a future failure.
- Lubrication and sealing: For greased bearings, elevated temperatures accelerate grease breakdown; adjust relube intervals accordingly, or prefer sealed‑for‑life units in heavy contamination. Bearing catalogs discuss how temperature affects service life and show typical permissible ranges for common seal materials.
- Cleanliness and contact control: Keep skirtboards set correctly and belt cleaners tensioned to spec. Unintended contact often outweighs the gains from a few premium rolls.
For authoritative safety references and bearing temperature guidance, see these sources:
- OSHA machine guarding standards and eTools: OSHA machine guarding standards and guidance (OSHA, standards portal, 2020 guide linked therein).
- Bearing maintenance “doctor” guidance and seal temperature ranges: NSK bearing maintenance guide with temperature effects on lubrication (NSK, maintenance guide) and NSK seal materials and temperature considerations (NSK, seals note).
Where digital monitoring helps without the hype
Use technology to extend your eyes and ears, not replace fundamentals.
- Acoustic/vibration trending: Rolling‑element idler faults are better caught with bearing‑specific signal processing than with general machine severity charts. ISO 20816’s scope notes that it doesn’t define criteria for rolling‑element bearings on small components like idlers. OEM tools offer practical presets for conveyor surveys; for example, SKF Microlog application notes on idler sound monitoring outline methods for detecting distressed idlers during walkdowns.
- Data discipline: Trend the same sections under similar operating conditions. Trigger actions when temperature or acoustic indicators persistently exceed neighbors, not on one‑off spikes.
Putting it together
- Start with safety and a kW baseline. Then find heat and noise.
- Fix contact and alignment first. Replace the hottest/noisiest idlers.
- Consider LRR belts for long runs; tune spacing and frames for plant belts.
- Verify every change against your baseline. Keep what works; re‑target what doesn’t.
If you’d like specification help on idlers, pulleys, or belts, consult your supplier or reach out to بيسونكونفي for application‑driven guidance.
References and further reading
- CEMA power formula and resistance factors (hp = Te × V / 33,000; Kx/Ky usage): CEMA Belt Book Chapter 6 public excerpt (CEMA, public excerpt).
- Overland case with indentation rolling resistance as the largest share: World’s Longest Single‑Flight Conventional Overland Belt Conveyor (CEMA‑hosted paper, 2019).
- DOE field approach to baselining kW and estimating load: Premium Efficiency Motor Selection and Application Guide (U.S. DOE, 2014).
- Bearing temperature and seal considerations: NSK bearing maintenance guide و NSK seal materials note (NSK, catalogs/guides).
- SKF idler sound monitoring context: SKF Microlog application note (SKF, application note).
- LRR belt energy‑reduction case: Continental press release with third‑party measurement (Continental, 2019).
